PRECISION EMC CHAMBERS BUILT FOR COMPLIANCE

Semi-anechoic and fully anechoic chambers for emissions, immunity and system-level EMC testing, from 1 m benches to 10 m facilities.

Speak with Engineers
ALVEX CATR · Bengaluru
Quiet zone 1.5 m
1.49 GHz to 24 GHz
5G FR1 and FR3
ISO/IEC 17025:2017

OVERVIEW

Each chamber is engineered as one RF environment: shielding panels, absorbers, antenna positioning, cable routing, power filtering, penetration panels and turntable designed together, not assembled from a catalogue.

Validation covers shielding effectiveness up to 40 GHz, NSIL, NSA, SVSWR and field uniformity, documented against the acceptance criteria in your contract.

GALLERY

DELIVERED CHAMBERS: A FEW EXAMPLES

Delivered chamber example 1

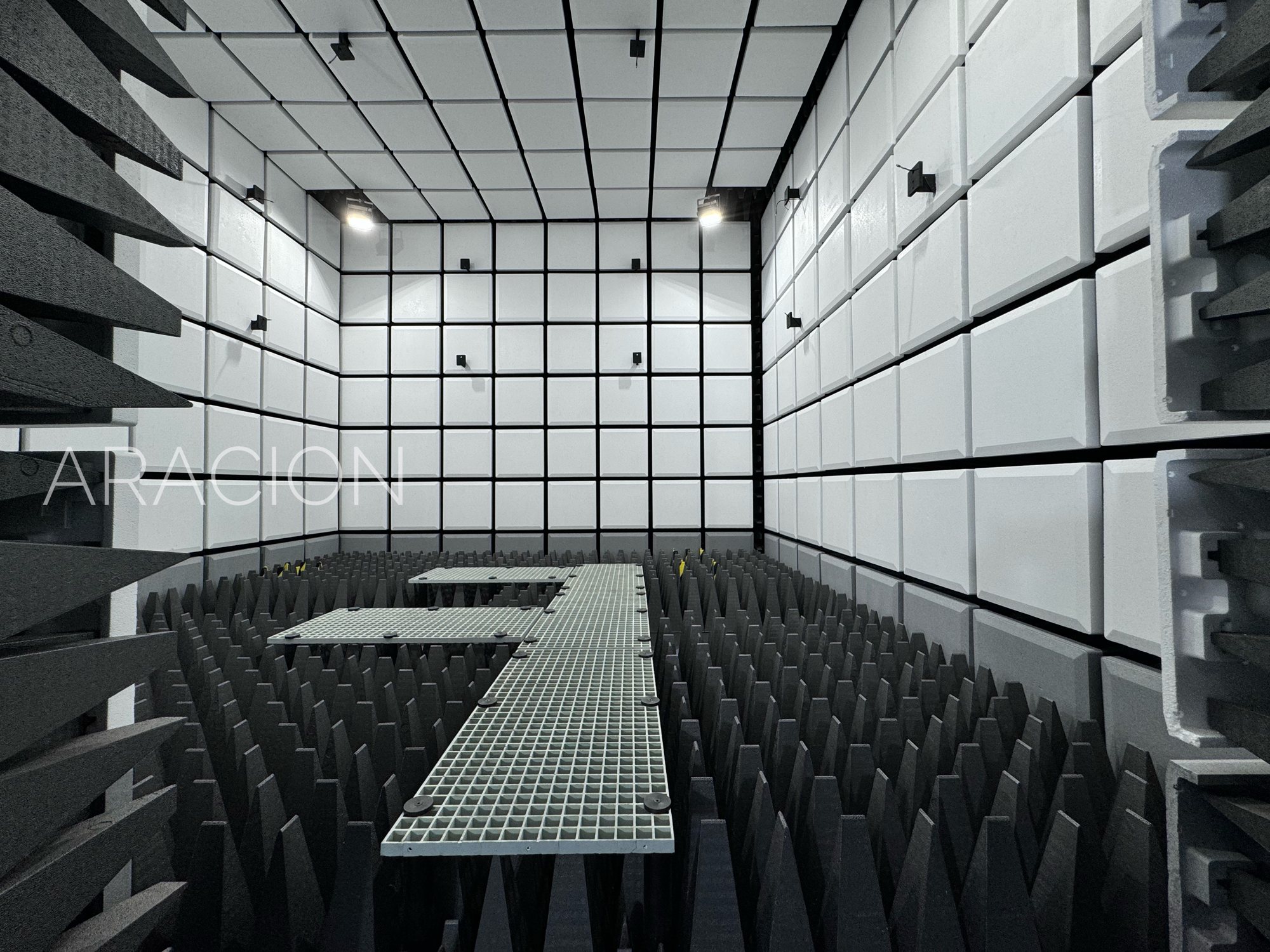

Delivered chamber example 2

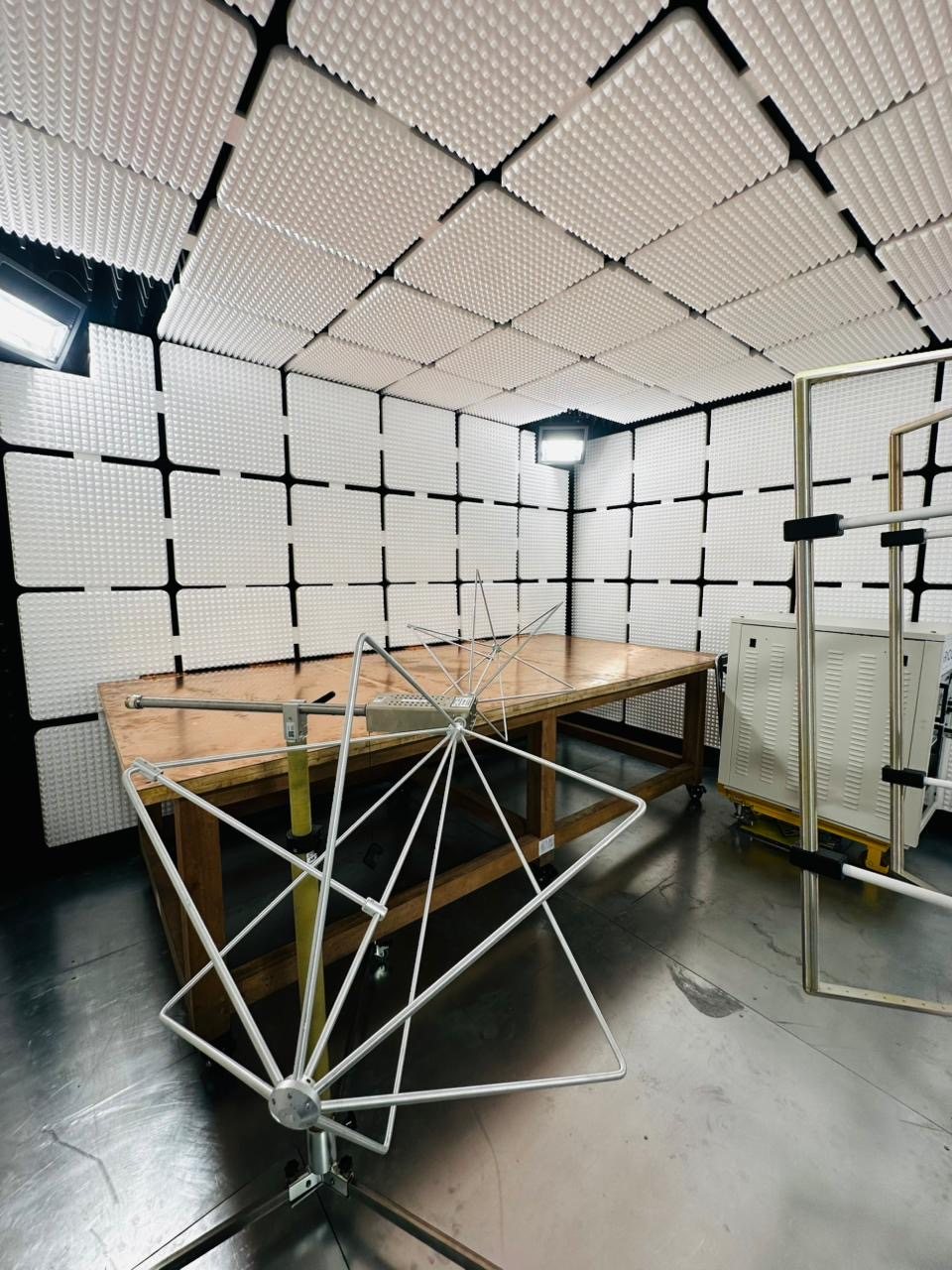

Delivered chamber example 3

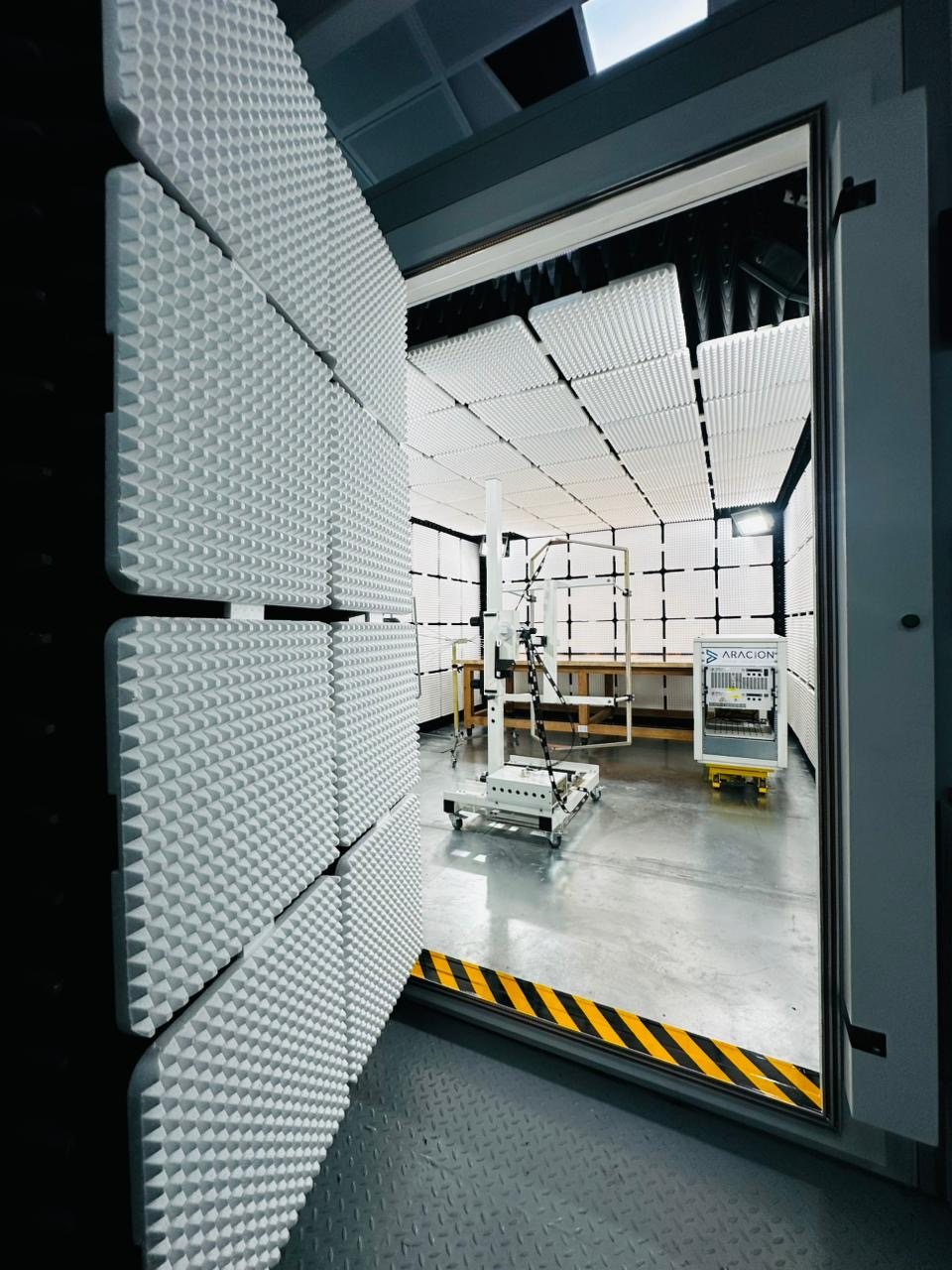

Delivered chamber example 4

CAPABILITIES

Test types

  • Radiated emissions
  • Radiated immunity
  • Conducted emissions
  • Conducted immunity
  • System-level EMC

Configurations

  • 1 m chambers
  • 3 m chambers
  • 5 m chambers
  • 10 m chambers
  • Custom designs

Integrated elements

  • Shielding panels and doors
  • Hybrid and ferrite absorbers
  • Masts and turntables
  • Power and signal filtering
  • Penetration panels

SUPPORTED STANDARDS (NON-EXHAUSTIVE)

MIL-STD-461 MIL-STD-464 CISPR 16 CISPR 25 CISPR 32 ISO 11452 IEC 61000-4-3

DISCUSS YOUR REQUIREMENT

Tell us what you need to test, build or secure. An engineer will reply with a practical next step.
